Mettre en évidence:
automatic screw locking machine with auto feeder
, high precision screw tightening driver
, automatic screwdriver machine with feeder
Modèle: |
ZT-LSJ441-01T |
Marque déposée: |
ZT |
Capacité de production: |
1000 |
Alimentation: |
Les réglages de tension sont les suivants: |
Industrie des applications: |
Électronique, automobile, électroménager |
Détection des erreurs: |
Détection et alarme automatiques d'erreurs |
Vitesse de verrouillage: |
30 à 60 vis par minute |
Vitesse de déplacement: |
0,1-800 mm/sec |
Matériau de vis applicable: |
Fer, acier inoxydable, cuivre |
Taille de vis: |
M0.8-M5.0 |
Afficher: |
Écran tactile |
Précision: |
±0,02 mm |
Méthode de contrôle: |
Automate + écran tactile |
Couple de verrouillage: |
0,8-2,0 Nm |
Efficacité de verrouillage: |
1.0-2.0s (basé sur la réalité) |
Pression atmosphérique de travail: |
0.4~0.8MPa |
Alimentation: |
680W |

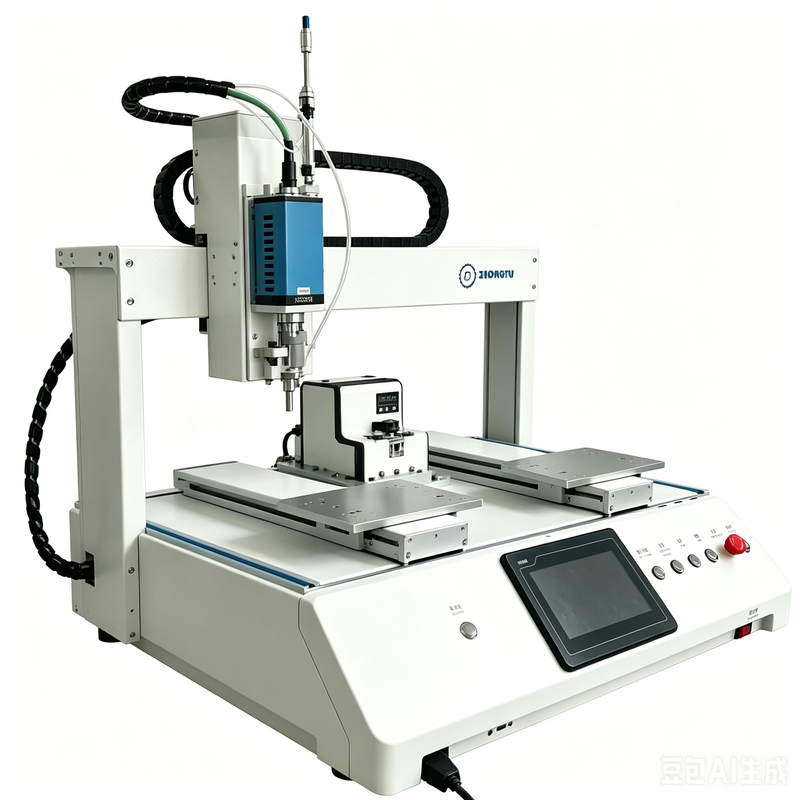

Automatic Screw Locking Machine | Single Head Dual Station Screw Fastening Robot
Product Description:
Our automatic screw locking machine is a professional desktop fastening equipment specially developed for electronic assembly industries.
Adopting single head and single station design, this machine realizes automatic screw feeding, positioning and tightening in one process.
It effectively replaces traditional manual screw driving, greatly improving production efficiency and product consistency.
Compact structure, stable operation and easy maintenance, it is an ideal automation solution for small and medium-sized assembly lines.
Product features:
♦ High precision positioning (±0.02mm)
♦ Wide torque adjustment range (0.5-20Nm)
♦ High efficiency (1.2-1.5 seconds per piece)
♦ Excellent pass rate (≥99.5%)
♦ Multiple screw feeding options
♦ Advanced micro-controller with touch panel control
♦ USB and RS232 communication ports
♦ High safety level design
♦ Support missing lock/sliding tooth/floating height alarm function;
♦ Support Automatic adjust the servo electric screwdriver speed and torque;
♦ Product cylinder clamping, automatic induction start movement function;
♦ Handheld LCD screen in Chinese and English, easy to program, learn and understand;
♦ Double stations operate left and right circularly to save the time of taking and discharging materials and improve production.
Specification:
|
Model
|
ZT-LSJ440
single head single station
|
ZT-LSJ441-01T
single head dual station
|
ZT-LSJ4411-02T
dual head dual station
|
ZT-LSJ4411-BKB
Back to back dual station
|
|
Motion range
|
X
|
400mm
|
400mm
|
400mm
|
400mm
|
|
Y1
|
300mm
|
300mm
|
300mm
|
300mm
|
|
Y2
|
|
300mm
|
300mm
|
300mm
|
|
Z
|
100mm
|
|
|
R
|
|
|
|
Applicable Screw Material
|
Iron, Stainless Steel, Copper
|
|
Worktable material
|
Aluminum alloy with surface electrophoretic treatment
|
|
Max load
|
Y/X-axis
|
5KG
|
|
Z-axis
|
3KG
|
|
Program capacity
|
999
|
|
Move methods
|
Spot to spot,Continuous Line Segment
|
|
Repetition accuracy
|
±0.02mm
|
|
Screwdriver Speed
|
30-60pcs/min
|
|
Moving speed
|
0.1-800mm/sec
|
|
Adjustable Torque Range
|
0.8-2.0Nm
|
|
Control system
|
PLC control
|
|
Electric Batch Module
|
HHB brushless electric machine
|
|
Latching efficiency
|
1.0-2.0s(based on actual)
|
|
Locking Screw Specifications
|
M0.8 to M5(optional according to your needs)
|
|
Feeding method
|
Blowing/Adsorption(optional)
|
|
Driving mode
|
Taiwan HIWIN linear guide
|
|
Italy Iraty conveyor
|
|
Closed-loop stepper mote(Leadshine/JMC)
|
|
Teaching method
|
Handheld programmer
|
|
Working air pressure
|
0.4~0.8MPa
|
|
Power input
|
AC220V-240V
|
|
Power supply
|
350W
|
680W
|
1000W
|
1000W
|
|
Size
|
65*55*85cm
|
85*78*85cm
|
100*78*85cm
|
80*90*85cm
|
|
Weight
|
50kg
|
65kg
|
65kg
|
85kg
|
Picture image:
Packing&shipping:
FAQ:
1.Are you just trading company or factory?
We are professional manufacturer for automation machine since 2015.
2.What is your Warranty for the product? How do you carry out it?
We provide 1 Year Warranty for unit machine and 3 years warranty for main board.More details pls contact me.
3.Do you make fixtures for our products?
Yes. We design and manufacture custom fixtures based on your samples or drawings.
4.What is your production lead time?
Standard models is about 7 to15 working days,customized machines is about 15 to 25 working days.
5.How do you control quality?
100% inspection before shipment, including assembly, testing, aging test, and calibration.
6.How to get technical support after purchase?
We provide online video guidance, remote debugging, and spare parts supply.
